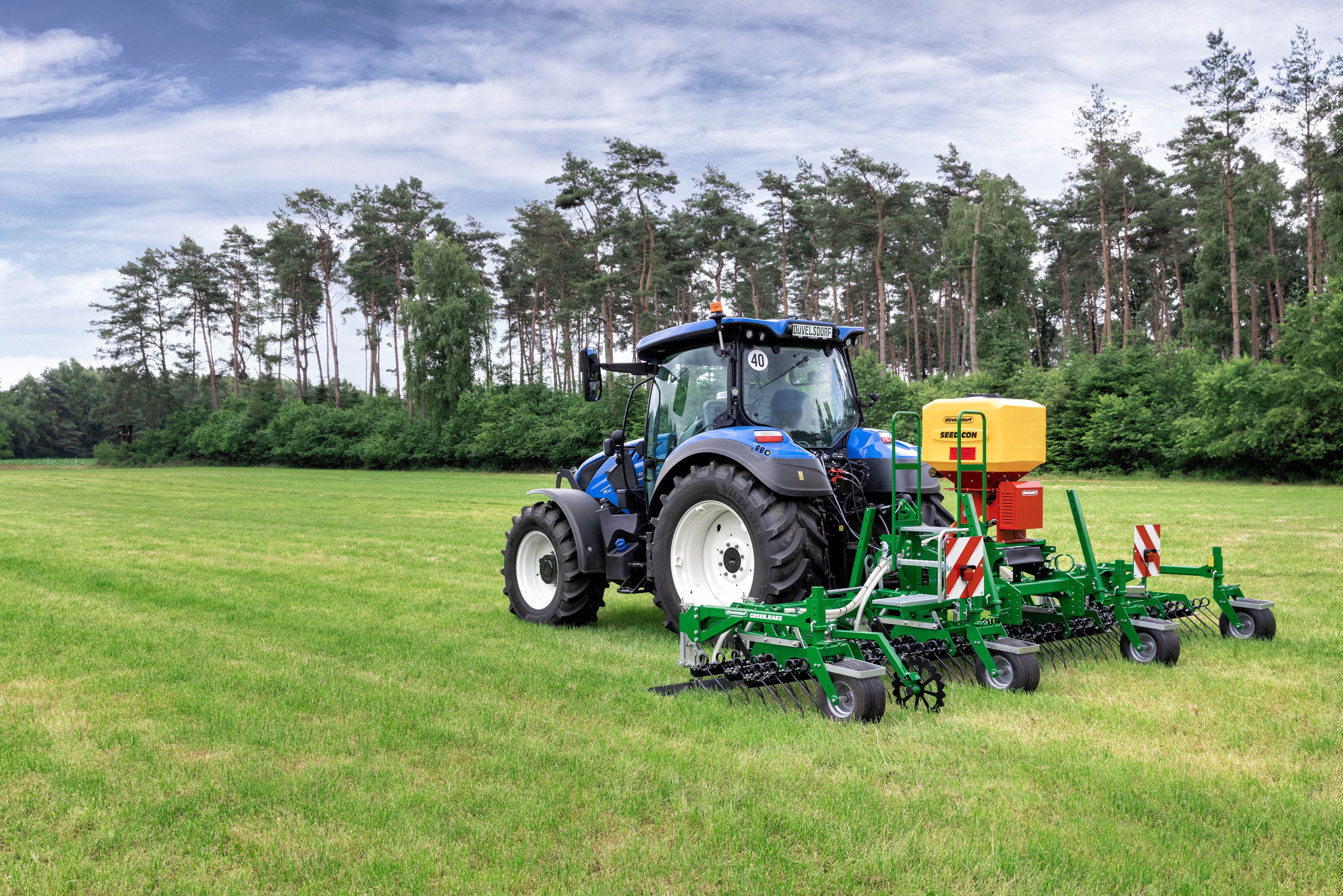

GREEN.RAKE expert - new Model
Possible uses:
Grassland maintenance and reseeding in spring until complete renovation in late summer
Re-sowing of grassland areas
Removal of damage caused by wild animals
In arable farming: sowing catch crops (ideally in combination with the TERRA.ROLLER expert)
IMPRESSIVE ON ANY TERRAIN.
The GREEN.RAKE expert can be adapted to your specific soil conditions. Not only do the individually suspended, 1.5 m wide harrow sections ensure optimum contour following, but the uniform harrow pre-pressure provided by the parallelogram guide also supports optimum adaptation to the ground contours. You determine how aggressively you harrow. The GREEN.RAKE expert can be adjusted from very gentle (e.g. for young grass on sandy, soft soils) to extremely aggressive for restoration on hard soils. CAT II and CAT III mounting is standard. Optionally, the harrow can be equipped with a sowing device (for reseeding or catch crops), a flexboard (for low-wear levelling on stony soils) and hydraulic adjustment of the tine aggressiveness and preload.
GREEN.RAKE expert in use
GREEN.RAKE expert
WELL DESIGNED DOWN TO THE LAST DETAIL:
Mechanical adjustment of the tines
The aggressiveness of the rake tines and thus their effect on the soil and turf can be conveniently adjusted by means of an easily accessible lever. You can choose from five different positions. This means the tines can be perfectly adapted to any operation.
Tine guard
n the event of tine loss the tine guard ensures that the tine is
taken along and not left on the grassland. This avoids potential damage during subsequent work operations. All düvelsdorf rakes are fitted with the tine guard.
Wheel attachment
The large trailing support wheels ensure very good height control of the rake. They also enable easy contour travel without the wheels scraping. The pre-pressure on the rake sections can be conveniently adjusted by setting the height.
Levelling bar
Optionally, the GREEN.RAKE expert can be fitted with a levelling bar. This ensures even, level ground and a clean result. To prevent damage when starting up or driving over
obstacles, the bar is spring-loaded and can deflect upwards. If this protection is not sufficient, an additional safety device via a shear bolt takes effect.
Flexboard
The flexboard, which ensures even, low-wear levelling on stony ground, can be added as an option. The plates, which are individually mounted on leaf springs, avoid stones
and foreign objects. This ensures smooth operation. The plates can be mounted in a dragging or scraping position to adjust work intensity. They simply need to be rotated by
180 to switch.
Raising and locking
For better utilisation on arable land, both the levelling bar and the Flexboard can be locked in the uppermost position. To do this, only two bolts need to be inserted. After locking in the uppermost position, the support is once again ready within reach at the side of the three-point tower.
Hydraulic tine adjustment
The aggressiveness of the tines is determined by their offset. As an additional accessory, the hydraulic adjustment allows the intensity to be continuously adjusted from the cab during use. The adjustment is made by using a single acting control unit.
Hydraulic pre-pressure adjustment
Adjusting the pre-pressure sets the working depth of the tines. Thanks to the pre-tensioned hydraulic cylinders, height differences in the surface can be equalised even better. For changing ground conditions, the hydraulic adjustment
extends the adjustment range through more efficient operation from the cab (optionally available).
Pre-pressure display
If the GREEN.RAKE expert is equipped with a hydraulic
pre-pressure adjustment, the pressure display enables precise adjustment and quick control of the pre-pressure.
Integrated hectar counter
An integrated hectare counter is optionally available — makes sense for farm subcontractors or rental machines.
The hectares travelled can be determined using a conversion
factor.
KENNFIXX
To make assigning hydraulic connectors to the right connections quick and easy, KENNFIXX® hose labels are installed as standard.
Coupling set
The coupling set enables the attachment of a TERRA.ROLLER
using a CAT II lower link hitch. The hydraulic, lighting and compressed air connections are conveniently plugged into the labelled connections on the GREEN.RAKE expert.
Seeder and seeder platform
The GREEN.RAKE expert is available with a seeder upon request. There are five models to choose from. A tail wheel, tractor meter cable or GPS sensor are available options for speed-dependent sowing. The hose guide on the frame enables smooth and efficient seed-spreading.
Collection trough
If your rake is equipped with a seeder, the practical collection
trough enables a user-friendly calibration test. The rail system with parking position provides a neat way to store the collection trough on the machine. In addition, any residual quantities can be quicklyemptied due to its size.
Holder for scales
To ensure that the calibration test is always possible everywhere, all seeder are equipped with scales and a weighing bag.
Seed distribution
The baffle plates are designed and mounted in such a way that the seed is evenly distributed in front of the tine section. This allows the rake tines to work the seed perfectly into the soil and ensures the best possible germination.
Tail wheel
The speed sensor on the tail wheel measures the working speed of the trailer, to ensure uniform seed sowing.
A further sensor determines the rake’s working or transport position. The seeding shaft is thus automatically switched on and off and prevents double sowing in the headlands.
Artikelno. at a glance
| deisgnation | Artikel-no. | |
| GREEN.RAKE expert 3 m with levelling bar | 2619300 | |
| GREEN.RAKE expert 6 m | 2624600 | |
| GREEN.RAKE expert 7,5 m | 2624750 | |
| GREEN.RAKE expert 9 m | 2624900 |
| Accessoires | Artikel-no. | |
| Levelling bar 6 m | 2625160 | |
| Levelling bar 7,5 m | 2625175 | |
| Levelling bar 9 m | 2625190 | |
| Seeder mounting kit 3 m | 2619380 | |
| Seeder mounting kit 6 m | 2625360 | |
| Seeder mounting kit 7,5 m | 2625375 | |
| Seeder mounting kit 9 m | 2625390 | |
| Hydraulic adjustment of tine aggressiveness 3 m | 2620130 | |
| Hydraulic adjustment of tine aggressiveness 6 m | 2625660 | |
| Hydraulic adjustment of tine aggressiveness 7,5 m | 2625675 | |
| Hydraulic adjustment of tine aggressiveness 9 m | 2625690 | |
| Hydraulic aggressiveness adjustment 3 m | 2620230 | |
| Hydraulic aggressiveness adjustment 6 m | 2625760 | |
| Hydraulic aggressiveness adjustment 7,5 m | 2625775 | |
| Hydraulic aggressiveness adjustment 9 m | 2625790 | |
| Front attachment kit 3 m | 2620050 | |
| Coupler set GREEN.RAKE expert – TERRA.ROLLER 3 m | 2619350 | |
| Coupler set GREEN.RAKE expert – TERRA.ROLLER 6 - 9 m | 2625500 | |
| Adapter CAT II to towing eye 1 | 2619998 | |
| Flexboard GREEN.RAKE expert 3 m | 2619130 | |
| Flexboard GREEN.RAKE expert 6 m | 2625260 | |
| Flexboard GREEN.RAKE expert 7,5 m | 2625275 | |
| Flexboard GREEN.RAKE expert 9 m | 2625290 | |
| Mechanical hectar counter 6 m | 2625450 | |
| Mechanical hectar counter 7,5 m | 2625460 | |
| Mechanical hectar counter 9 m | 2625470 |
1 With the CAT II to towing eye adapter, a TÜV certificate for obtaining a general operating permit (German ABE certification) is not available.
